FG20037- RHINO 9-FT KIT BOWED WALL REPAIR UNIDIRECTIONAL VERTICAL

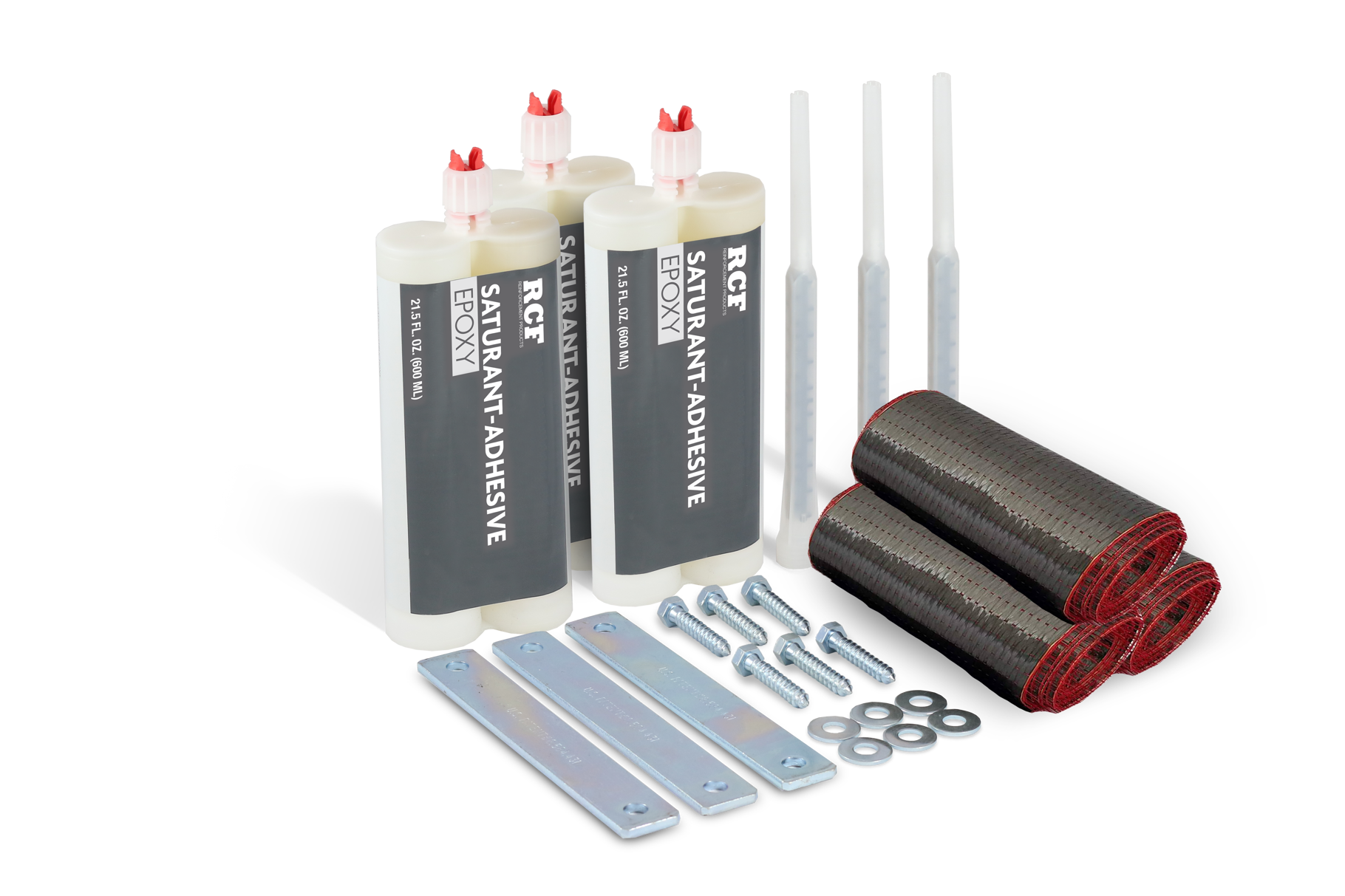

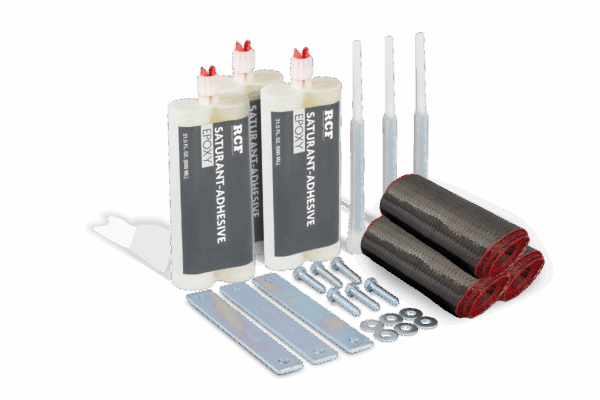

9-FT KIT BOWED WALL REPAIR UNIDIRECTIONAL VERTICAL 400GSM 6″ x 9′ (RCF-9040 )

• (3) 9 Foot (6″ Wide) 400 GSM
Unidirectional-Vertical
Carbon Fiber Straps
• (2) Tubes of Epoxy Adhesive
• (2) Static Epoxy Nozzles
• (3) Sill Plate Brackets
• Bolts and Washers
• Gloves and Instructions

Specifications

Carbon Fiber Weight per Area

400 GSM

Fiber Orientation

Unidirectional, Vertical

Strap Length

123″, designed for wall with height shorter or equal to 9′ Feet

Number of Straps in Kit

3

Carbon Fiber Width

6″ Inches

Laminate Tensile Strength

128.8ksi

Color

Black Composite

Cure Time

2-10 hrs for initial cure depending on the temperature; suggested to wait for 24hr or longer for full strength development

Mix Ratio

1:1

End Application

Bowed Wall Repair
